防火安全柜_EN 14470-1标准

型号: SC2-60F-0806D1-CL
品牌: Lab Companion
参数: 内部容积:99升,耐火时间:60分钟
用途: 储藏可燃样品、试剂、重要文件资料等
技术参数
性能特点
可选配件
产品评论(0)

基本参数

Specification (Type 60)

Model

SC2-60F-0806D1-CL/SC2-60F-0806D1-CR

SC2-60F-0706D1-C

Internal volume (L)

89

76

Interior dimensions

(W x D x H, mm)

505 x 419 x 422

505 x 419 x 362

Exterior dimensions

(W * D *H, mm)

600 x 610 x 820

600 x 610 x 720

Max. load (kg)

80

80

CE certification

O

O

Weight (kg)

106

100

Cat. No.

AAAF360310
AAAF360311

AAAF360110

Product appearance

SC2-60F-0806D1-CL

SC2-60F-0706D1-C

Product interior

SC2-60F-0806D1-CR


1) Drawer Type is the maximum load for theDrawer.

Diverse certifications obtained

  • Only one in Korea to obtain CE (EN14470-l) certification.

  • Acquired Certificate of Excellent Product from the Public Procurement Service in Korea.

  • Acquired performance certification from the Ministry of SMEs and Startup in Korea.

  • Awarded the 2018 Safe Korean Technology Prize by the Ministry of the Interior and Safety.

  • * EN14470-1 verifies that the equipment meets the European safety standards for dangerous goods containers such as fire resistance, internal ventilation, shelf stability, and automatic door closure.

Safe storage from fire

  • High fire resistance

  • Fire resistance performance is in accordance with the strictest European standard, with the internal temperature kept below 180K for up to 90 minutes in the event of fire.

  • Fire Response Sealing System

  • When the temperature reaches 50°C, the door automatically closes. When the ambient temperature reaches 70±10°C, the exhaust holes and ventilation openings are automatically closed, totally blocking the flow of heat from the outside in the event of fire

  • The right model for the application can be selected

  • Possible to suppress fire at the natural ignition point of the dangerous goods being handled.

  • Model selected considering the prediction time, etc.

  • Chemical resistant interior material

  • Excellent chemical resistance even for long-term use with the interior material coated with polyphenol resin.

  • Under bench type height-adjustable (SC3 Under-type Model)

  • 750 mm/820 mm height can be selected considering the work height when hood is installed at the bottom.

Solid and secure shelf structure

  • Solid shelf structure

  • It is a solid structure allowing for up to 80kg to be held per shelf and it can be fixed firmly to the left and right inside walls

  • Safe shelf design

  • With 30mm-deep shelf shape for safe storage, it is designed to be safe even if the stored contents are leaked.

  • Right shelf selection

  • The built-in shelf is excellent in chemical resistance due to epoxy powder coating. Also, stainless steel shelves and PP trays can be selected. (optional).

Proven fireproof performance!

Items Proven by Testing

30 minutes / 60 minutes / 90 minutes fire resistance performance test.

For fire test according to standards of EN 1363-1, the time required for AT to be kept below 180°C is expressed as fire resistance (EN-14470-1).

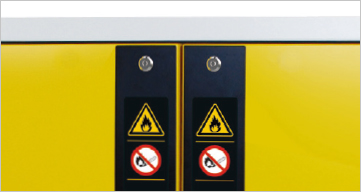

Key lock device


Effluent reservoir

Safe handling in the event of stored material leakage and prevention of leakage out of the cabinets.

Key lock device

Key lock is provided as standard to block unauthorized access.

Safe stored materials handling

Ergonomic structure with easy access to shelves for user's safety and convenience.




Convenient moving and installation

Forklift fork space for convenient movement.

Leveling feet for stable installation.

Extraction Module (option)

Filters flammable gas inside the cabinet with a carbon filter without connecting a separate duct


EN 14470-1

NFPA 30

Fire resistance
   performance

0

0

Fire test according to EN 1363-1,
15 min.- 90 min.
(15 min. / 30 min. / 60 min. / 90 min.)

NFPA 251 standard fire resistance test,   10 minute level

Flammable vapor
   ventilation

0

0

Flammable vapor ventilation is   recommended.
Check sound pressure formation inside the cabinet during ventilation.

Ventilation is not recommended.
(Recommended to use level of container recommended in NFPA 30.)

Flammable vapor ventilation

Keeps flammable vapors below the LEL   concentration and removes odors through ventilation.

Flammable vapor ventilation

It seals the ventilation holes, and an   odor occurs inside the storage cabinet.

The risk of ignition is increased as the concentration of flammable vapor   increases.

Safety Cover

0

0

Automatic door and ventilation closure   during fire test

In the case of a fire test, test with the   ventilation hole blocked.
Fire safety not considered when connecting to external ventilation   facilities.

Comparison of EN 14470-1 and NFPA 30International Standards

Fire resistance performance 60-minutestype

Type

Model

Under

SC2-60F-0812D2

SC2-60F-0809D1

SC2-60F-0806D1-CL

SC2-60F-0806D1-CR

SC2-60F-0706D1-C

※ LC Connected service scheduled for release

Accessories (Type 60)

Accessory

Description

(W x D x H, mm)

SC2-60F-0806D1-CL/SC2-60F-0806D1-CR

SC2-60F-0706D1-C

Plinth (Side)

480 x 340 x 350

AAAF15364

AAAF15364

Extraction Module EM-33) (230V, 60Hz)

348 x 498 x 343

AAAF1536

AAAF1536


※ Please refer to page 199 for details on EM-33 compatible filter.

※ Please refer to page 208 for detailed images of shelf, sump,drawer, and tray.

Dimension (Unit: mm)

Model

A

B

C1)

D(Diameter)

Under (Door)

SC2-60F-0806D1-CR/CL

125

530

1070

102

SC2-60F-0706D1-C

125

480

1070

102


1) C is the maximum depth when the door isopened.


Bottom Collecting Pump Specification by Model

Model

A

SC2-60F-0806D1-CL/CR

503 x 418 x 35

SC2-60F-0706D1-C

503 x 418 x 35


※ Choose one between a epoxy powder coated steel and a stainlesssteel material

Shelf

Bottom Collecting Sump

Tray (PP)

Shelf

Bottom Collecting Sump

Tray (PP)

Drawer

Fume Extraction Module (EM-33)


Drawer

Fume Extraction Module (EM-33)

Plinth (Side) + EM-33
